High press pipeline

Mss-Sp-95 Stainless Steel A182 Eccenthic Swaged High Press Nipple

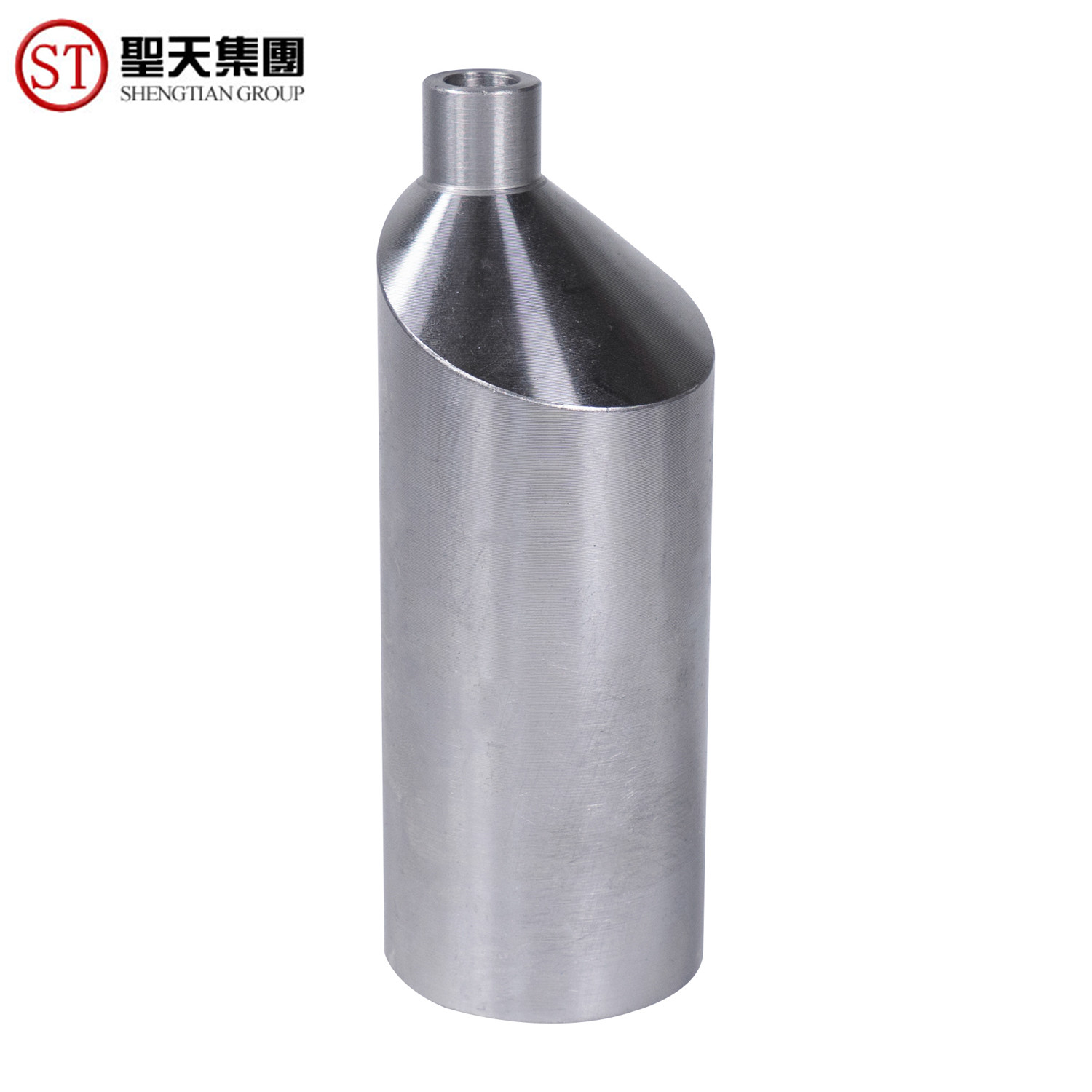

PIC-(Mss-Sp-95 Stainless Steel A182 Eccenthic Swaged High Press Nipple)

Mss-Sp-95 Stainless Steel A182 Eccenthic Swaged High Press Nipple

Product Description

　　Size:1/8"~4″

　　Pressure:

　　Threaded Type:-2000/3000/6000LBS

　　Socket Type:-3000/6000/9000LBS

　　Butt Weld Type:-SCH40/SCH80/SCH160/XXS

　　Standard:GB/T 7306,12716,14383,14626

　　ANSI/ASME B 1.20.1,B16.11

　　MSS SP-79, 83, 95, 97 JIS B0203,B2316.

　　Material:

　　Stainless steel:F304,F316L,F310S,F317L,F321,F347

　　Carbon steel:A105,A106,A53,LF2,16MN,A234 WPB

　　Alloy steel: (F11,F22,F5,F9,F91)

　　Duplex steel: F44,F51,F53,F55,F60

　　Special steel : 904L,N04400,N08810,N08020,N06625

　　Connection type: welded,threaded,BW,SW

　　Surface:Carbon steel and alloy steel with yellow print, black print, oil or zinc .

　　Application:

　　Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc

Material Grade

Standard of Swaged Nipple & Bull Plugs: MSS SP-95
TYPE	ASTM	DIN/ EN
Austenitic Stainless Steel	A403: WP304, WP304L, WP304H, WP304N, WP304LN WP310S, WP310H WP316, WP316L, WP316H, WP316N, WP316LN W317, WP317L WP321, WP321H WP347, WP347H, WP347LN WP304/304L, WP316/316L, WP317/317L, WP321/321H	1.4301(X5CrNi1810) 1.4306(X2CrNi1911) 1.4301H(X5CrNBi1810H) 1.4311(X2CrNiN1810) 1.4845(X12CrNi2521) 1.4401(X5CrNiMo17122) 1.4404(X2CrNiMo171321) 1.4919(X6CrNiMo1713) 1.4406(X2CrNiMoN17122) 1.4571(X6CrNiMoTi17122) 1.4438(X2CrNIMo18164) 1.4449(X5CrNiMo1713) 1.4541(X6CrNiTi1810) 1.4541H(X6CrNiTi1810H) 1.4550(X6CrNiNb1810) 1.4961(X8CrNiNb16-13)
Duplex Steel	A815: WPS31803(UNS S31803) WS32750(UNS S32750) WPS32760(UNS S32760) WS32205(UNS S32205)	1.4462(X2CrNiMoN22-5-3), 1.4410(X2CrNiMoN25-7-4) 1.4501(X2CrNiMoCuWN25-7-4)
Super Stainless Steel	A403: N08904(904L), S31254(254SMO)	1.4539(X2NiCrMoCu25-20-5), 1.4547(X2NiCrMoCu20-18-7)
Alloy Steel	A234: WP1, WP12, WP11, WP22, WP5, WP9, WP91	1.5423(16Mo5) 1.7335(13CMo44)/13CrMo4-5 1.7380(10CrMo9-10) 1.7362(12CrMo195) 1.4903/X10CrMoVNb9-1
Carbon Steel	A234: WPA, WPB, WPC	1.0305 (St35.8) /P235GH(1.0345) 1.0405(St45.8) /P265GH(1.0425) 1.0482(19Mn5)
Low-temperature Steel	A420 WPL3, WPL6, WPL9	1.5837/1.5637(10Ni14)/12Ni4 1.0488(TSTE285), TSTE355(1.0566)
Standard of Nipple:BS3799
TYPE	ASTM	DIN/ EN
Austenitic Stainless Steel	A312: TP304, TP316, TP321	1.4301(X5CrNi1810) 1.4401(X5CrNiMo17122) 1.4541(X6CrNiTi1810)
Alloy Steel	A334: Gr6,Gr4,Gr8 A335: P1,P11,P5,P22 A182: F1,F11,F5,F22	1.7335(13CMo44)/13CrMo4-5 1.7362(12CrMo195)
Carbon Steel	A106 GrB	1.0405(St45.8) /P265GH(1.0425)
Low-temperature Steel	A333: Gr3,Gr6 A350: LF1,LF2,LF3	1.5837/1.5637(10Ni14)/12Ni4 1.0488(TSTE285)
Standard of Pipe Nipple:ASTM A733
TYPE	ASTM	DIN/ EN
Carbon Steel	A53: GrA, GrB A106: GrA, GrB, GrC	1.0254(St37.0)/P235TR1 1.0570(St52-3)/S355J2H(1.0576) 1.0305(St35.8/I)/P235GH TC1(1.0345) 1.0305(St35.8/III)/P235GH TC2(1.0345) 1.0405(St45.8/I)/P265GH TC1(1.0425) 1.0405(St45.8/III)/P265GH TC2(1.0425)
Austenitic Stainless Steel	A312: TP304, TP304L, TP304H TP304N, TP304LN, TP310S TP310H, TP316, TP316L TP316H, TP316N, TP316LN TP36Ti, TP317, TP317L TP321, TP321H, TP347 TP347H, TP347LN TP304/TP304L TP316/TP316L TP317/317L TP321/TP321H	1.4301(X5CrNi1810) 1.4306(X2CrNi1911) 1.4301H(X5CrNBi1810H) 1.4311(X2CrNiN1810) 1.4845(X12CrNi2521) 1.4401(X5CrNiMo17122) 1.4404(X2CrNiMo171321) 1.4919(X6CrNiMo1713) 1.4406(X2CrNiMoN17122) 1.4571(X6CrNiMoTi17122) 1.4438(X2CrNIMo18164) 1.4449(X5CrNiMo1713) 1.4541(X6CrNiTi1810) 1.4541H(X6CrNiTi1810H) 1.4550(X6CrNiNb1810)
Super Stainless Steel	A312: N08904(904L) S31254(254SMO) UNS S31050 UNS S31603	1.4539(X2NiCrMoCu25-20-5) 1.4547(X2NiCrMoCu20-18-7) 2RE69/1.4466(X1CrNiMoN25-22-2) 3R60/1.4435(X 2 CrNiMo 18-14-3)
